Meilingge modular belt conveyor batch diversion type
The batch diverting conveyor uses the transverse roller drive of the modular plastic conveyor belt to change the conveying direction of the items. The items are kept in a certain direction through the preprocessing unit, and the bottom functional mechanism is used to drive the transverse rollers on the surface of the modular plastic conveyor belt to achieve batch diversion of the items. It eliminates manual operations in all aspects, improves the efficiency of orderly diversion or packaging, reduces labor intensity, and improves the efficiency of sorting machine loading and packaging.
Application fields:
Express delivery/logistics
E-commerce
Warehousing and Distribution
Ordering Consultation

Product Description

Batch diversion conveyor uses transverse roller of modular plastic belt to change conveying orientation. The items are kept closed to a certain direction through the pre precautionary mearsure functional unit, and the bottom kinetic energy mechanism is used to drive the lateral roller of the modular plastic conveyor belt to achieve batch diversity of the items.

Technical data

未标题-40_画板 1.jpg

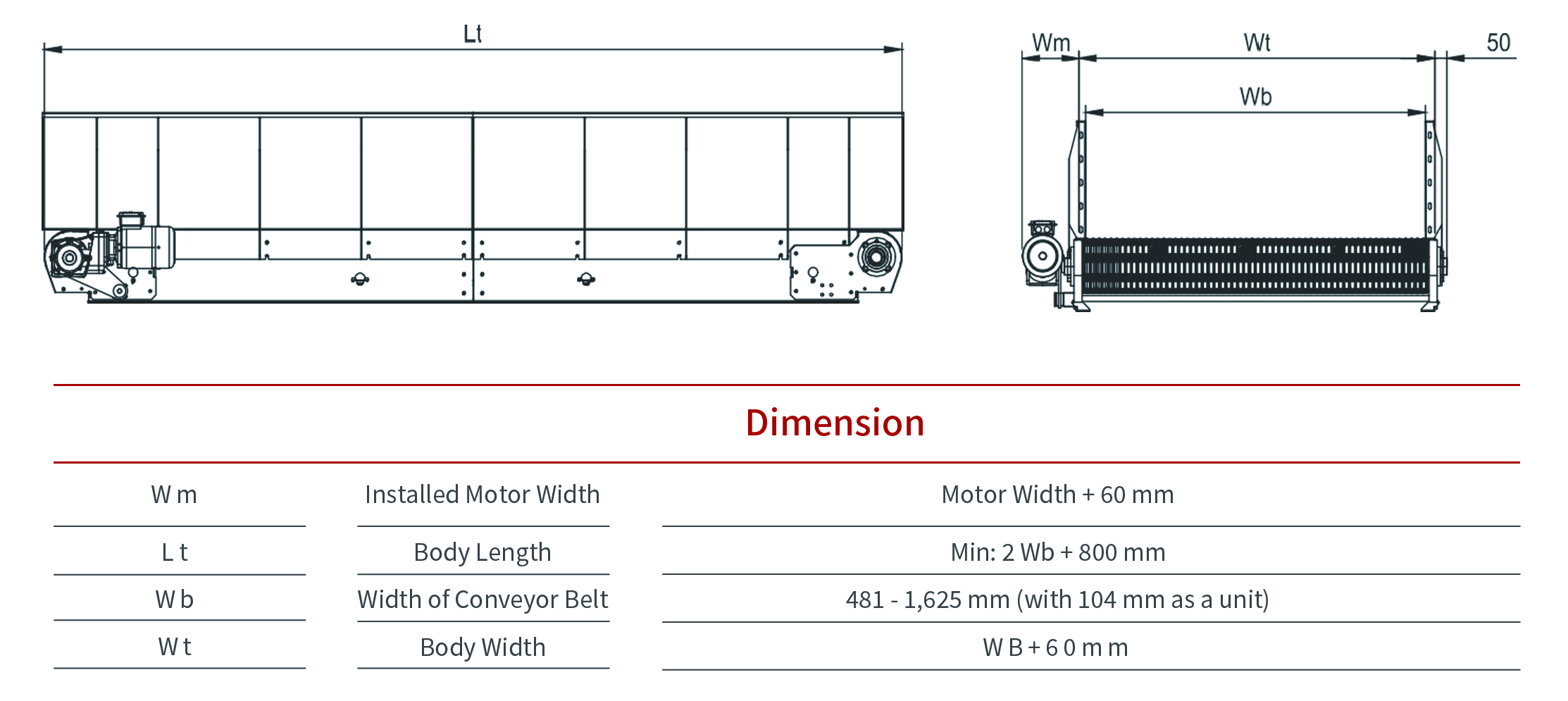

Size



Scope of Supply

·The modular has been fully assembled and may be divided into sections
·Equipped with a motor (optional electric control box)
