M500 Series
M500P

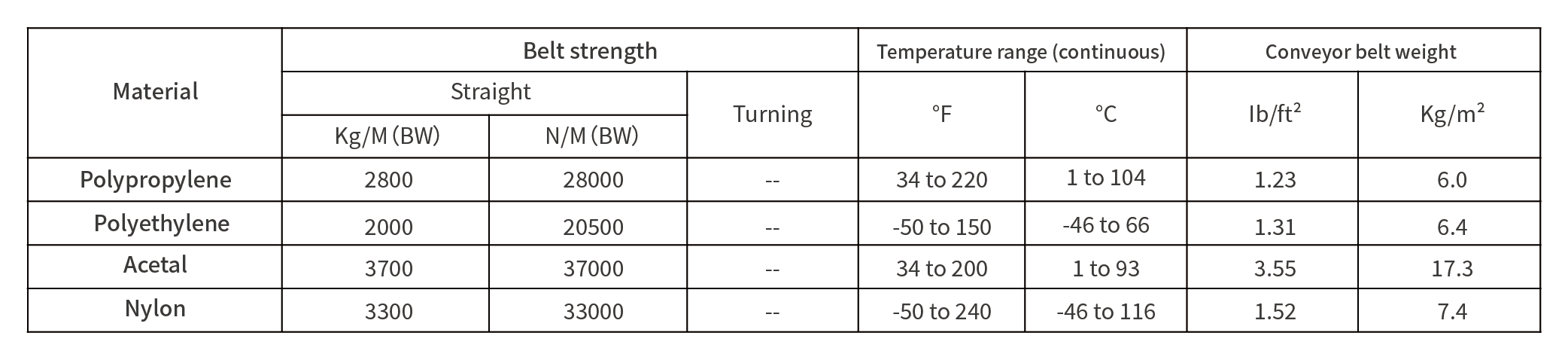

Specification parameters

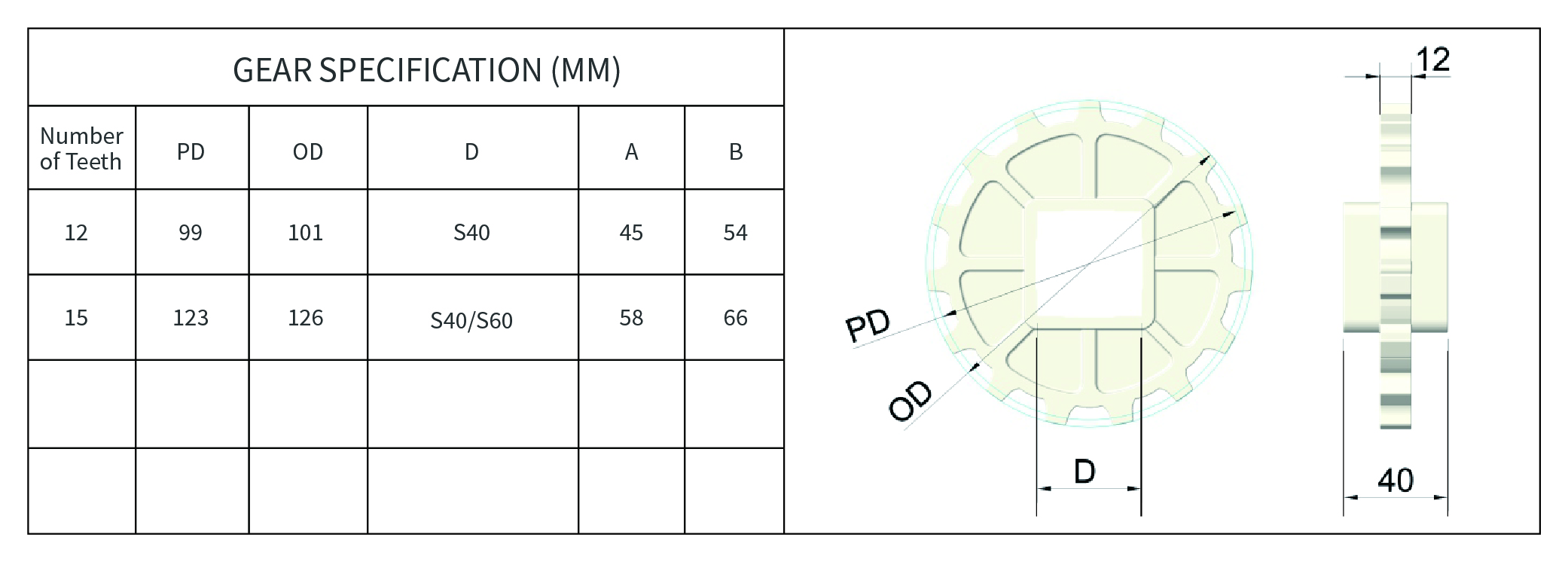

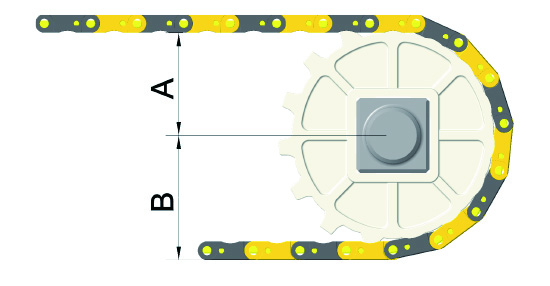

Sprocket specification(mm)

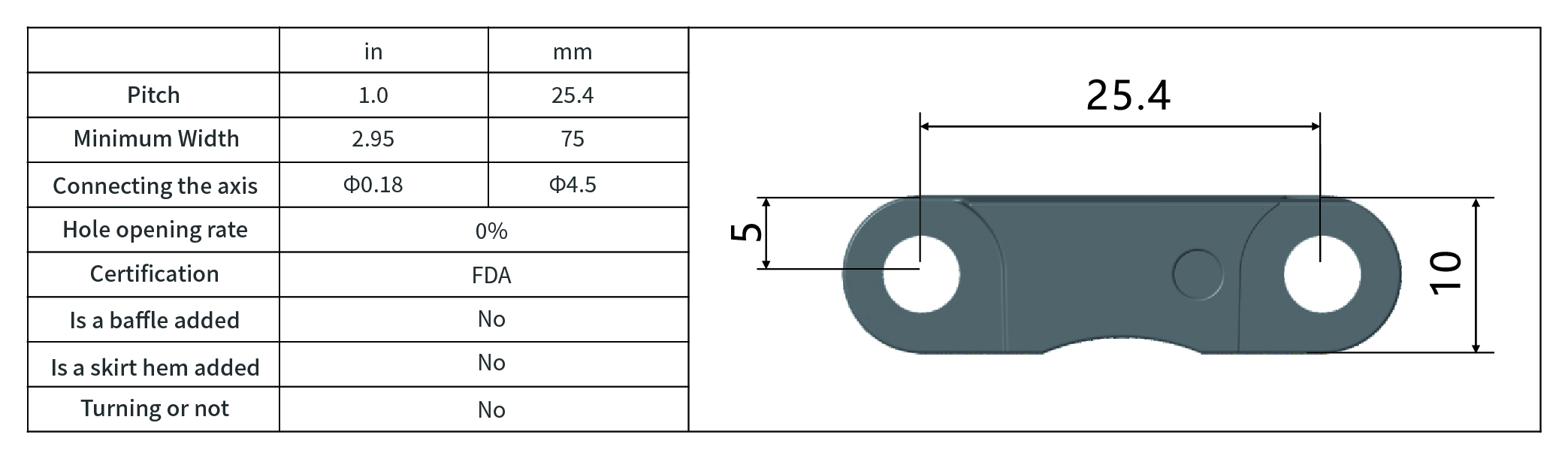

Belt size
Available standard materials

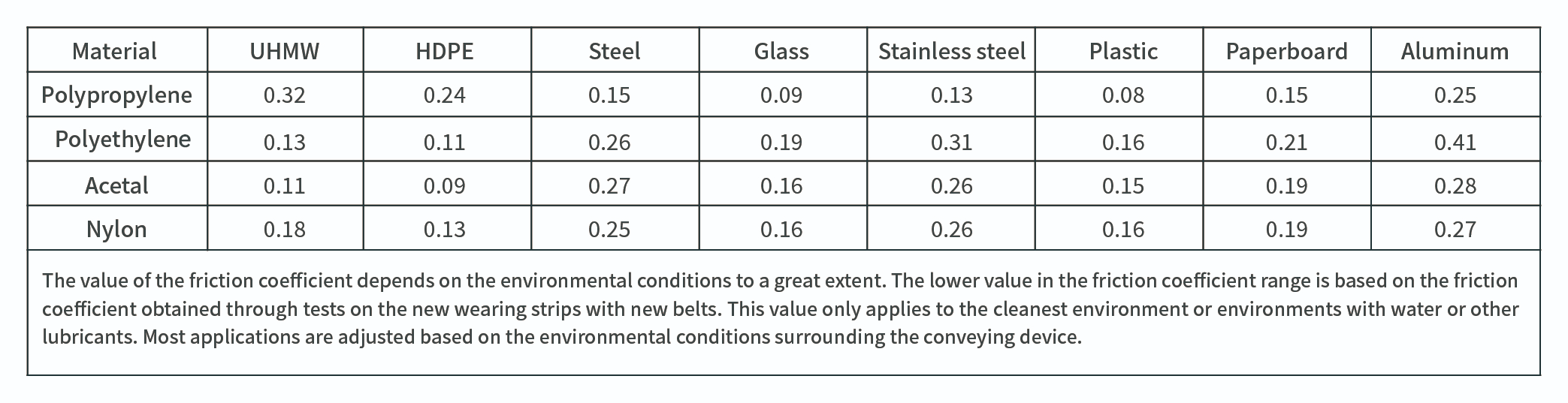

Friction coefficient

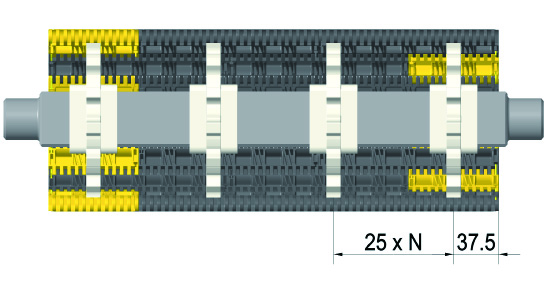

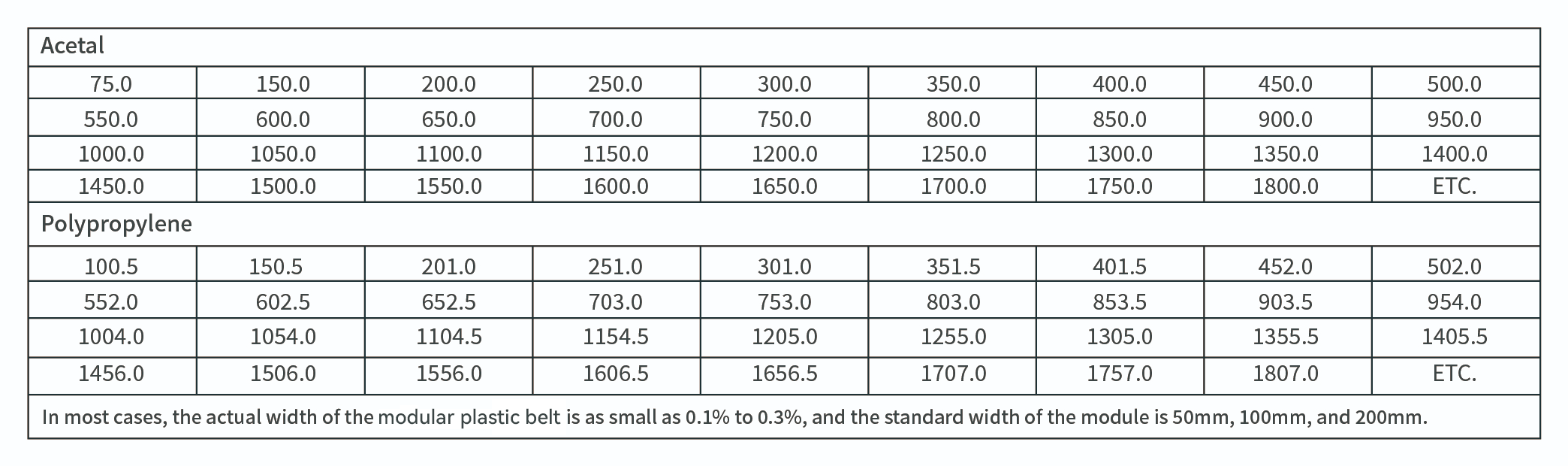

Width standard range (mm)
All measures and tolerances are set at a temperature condition of 20; Please refer to the Meilingge product manual "Temperature Effects" for temperature deviations All imperial dimensions (inches) are rounded off
Compliant with FDA 21CFR regulations
Compliant with the regulations of (EU) 10/2011 and (EC) 1935/2004 on raw materials and migration thresholds for valves
More materials and colors can be provided as requested
